Available machinery · A-2026-14
Nawara FW 2030 dust extraction and heat-recovery system
Industrial dust-extraction installation for wood dust, chips and sawdust, built around a Nawara Serwis FW 2030 overpressure bag filter. The system is equipped for recirculation of cleaned air to the production hall during the heating season.
Application and operation
System description
The installation is intended for the extraction and filtration of wood dust, chips and sawdust generated by industrial woodworking machinery. Its central element is the Nawara Serwis FW 2030 overpressure bag filter, which separates conveyed material from the process air.
The system combines a nominal air capacity of 30,000 m³/h with 150 m² of filtration area. Filter bags measuring Ø160 × 3,000 mm are cleaned by an automatic mechanical shaker, helping maintain filtration performance while reducing the need for manual cleaning.
During the heating season, filtered air can be returned to the production hall. This recirculation recovers heat already contained in the extracted air and can reduce energy losses associated with discharging warmed air outside the building.

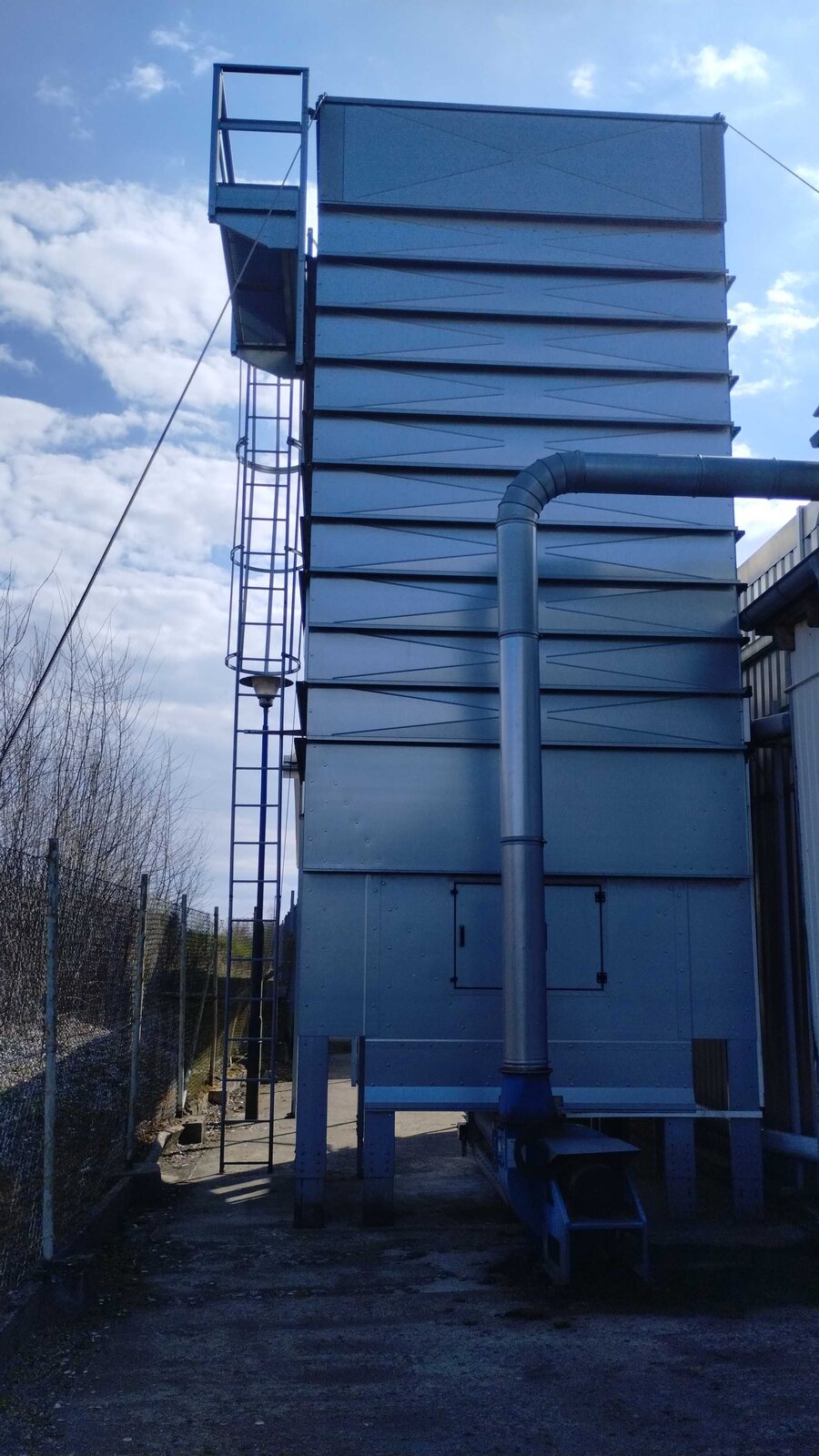

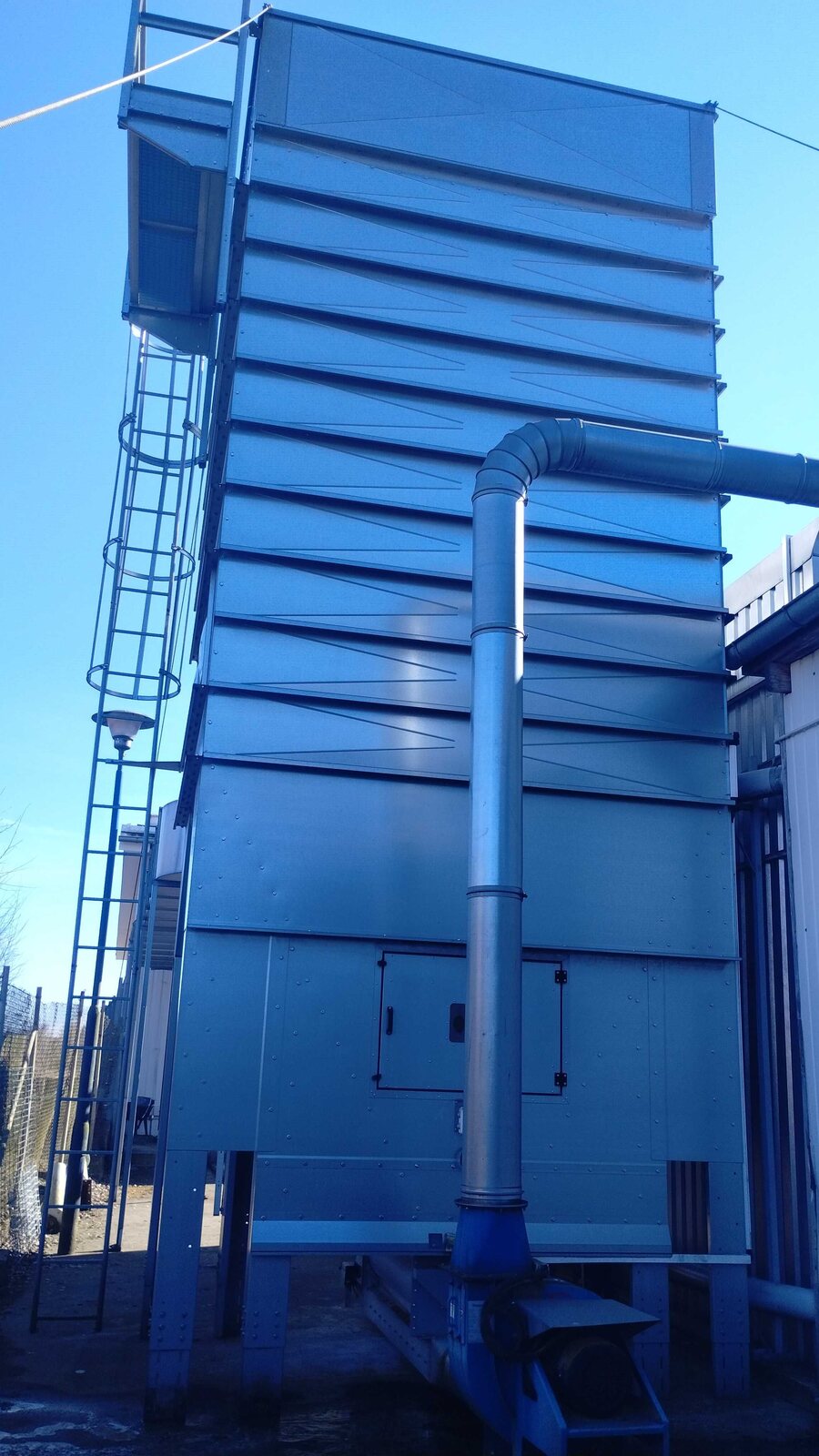

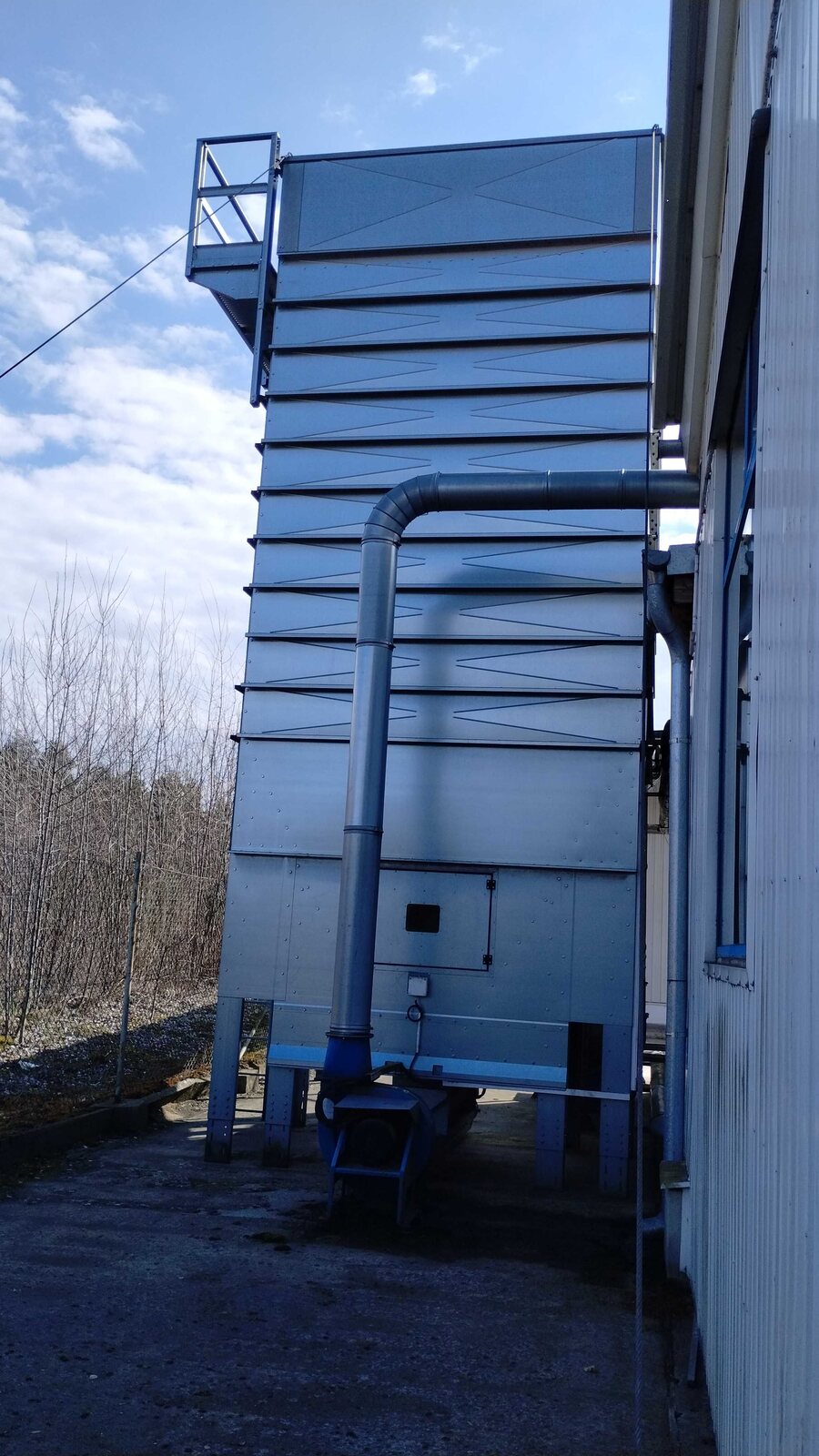

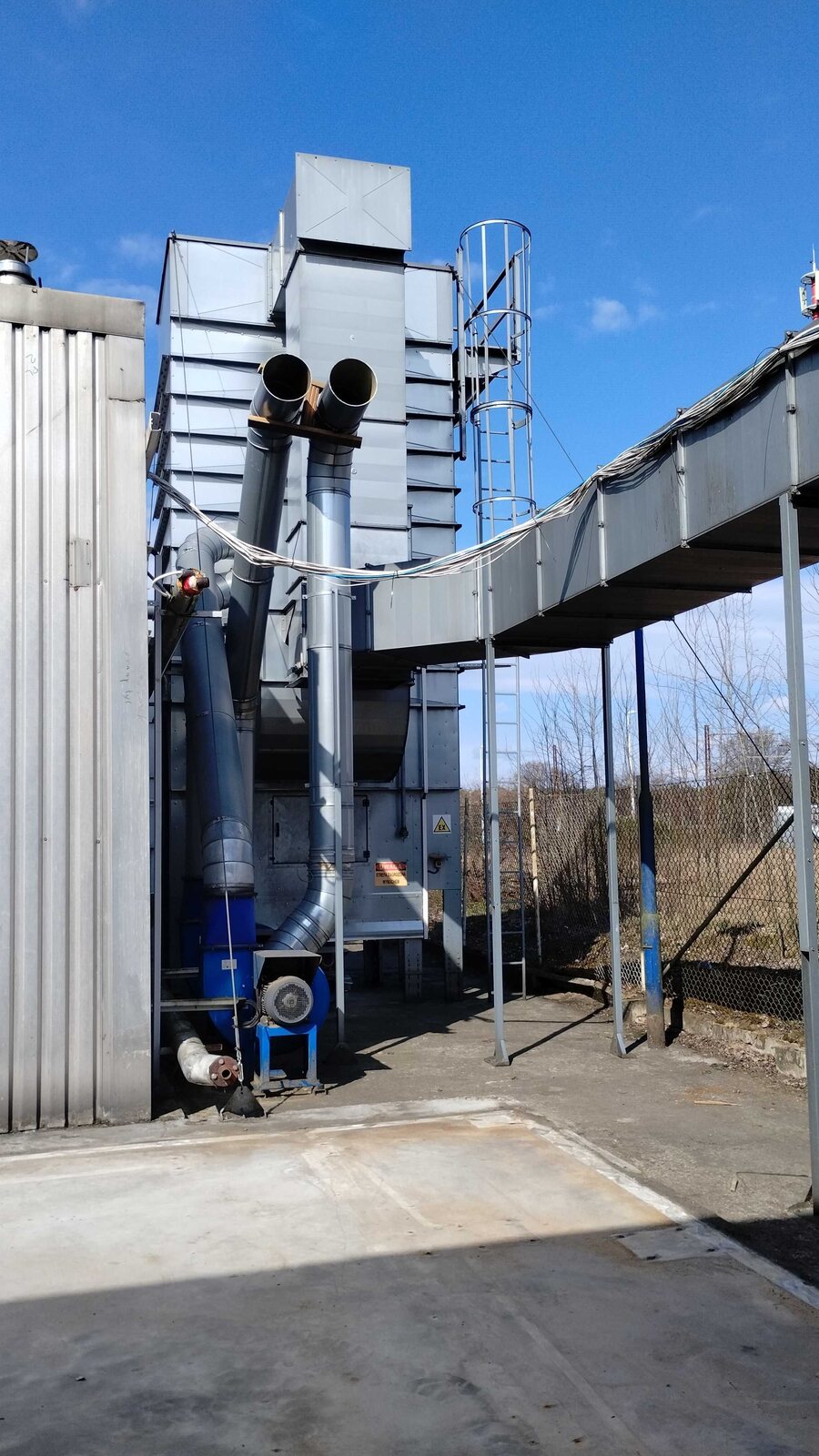

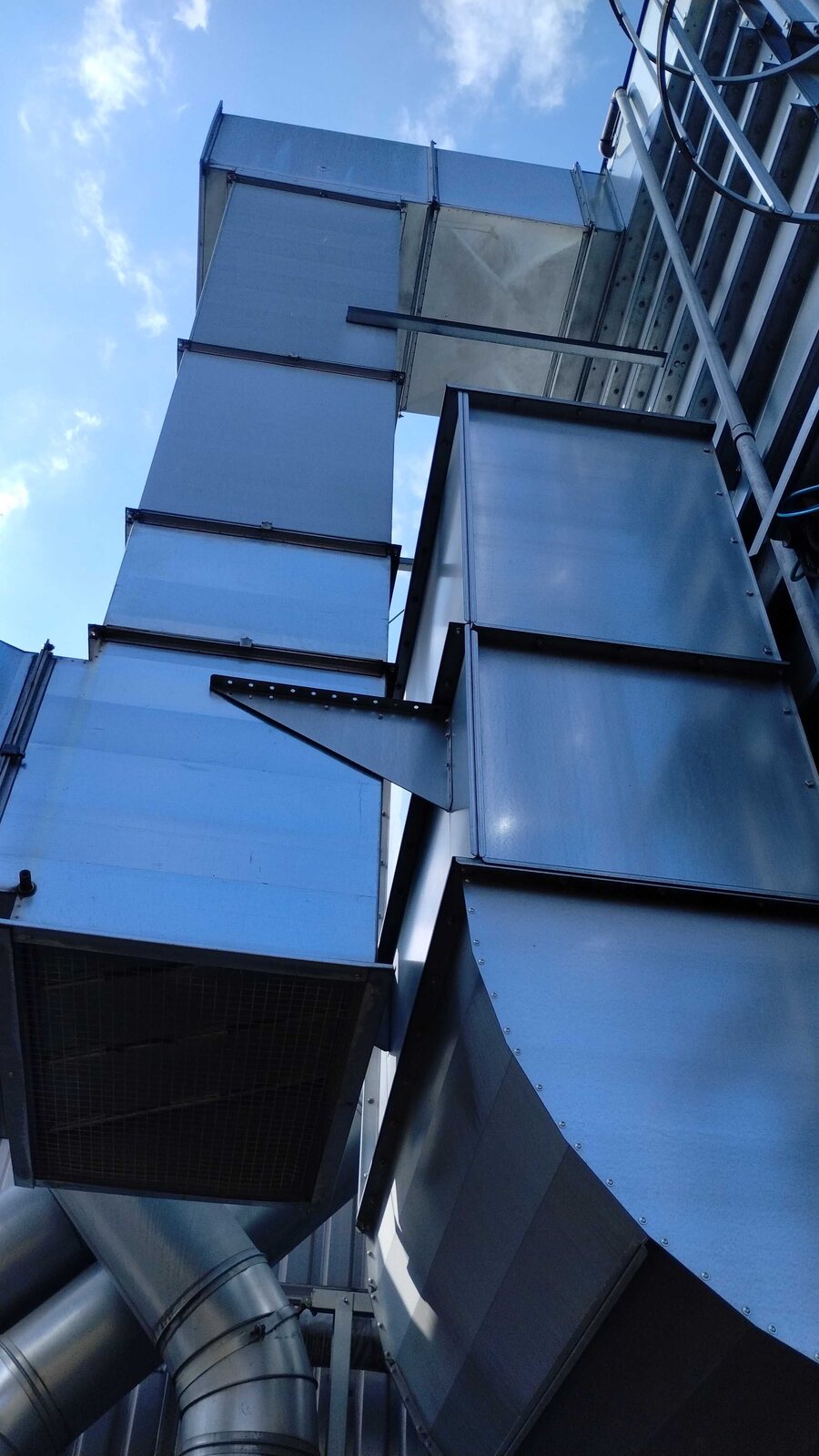

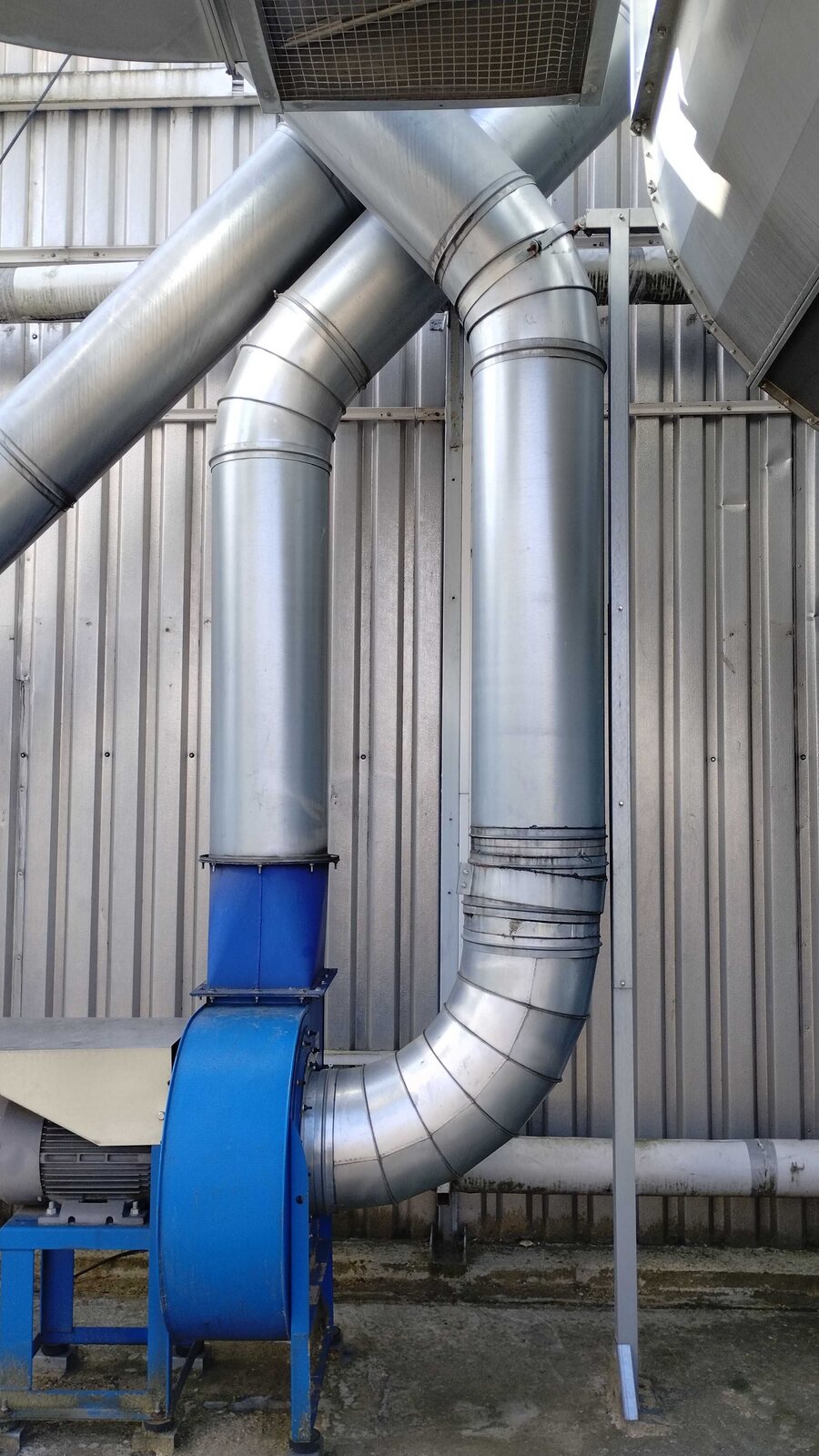

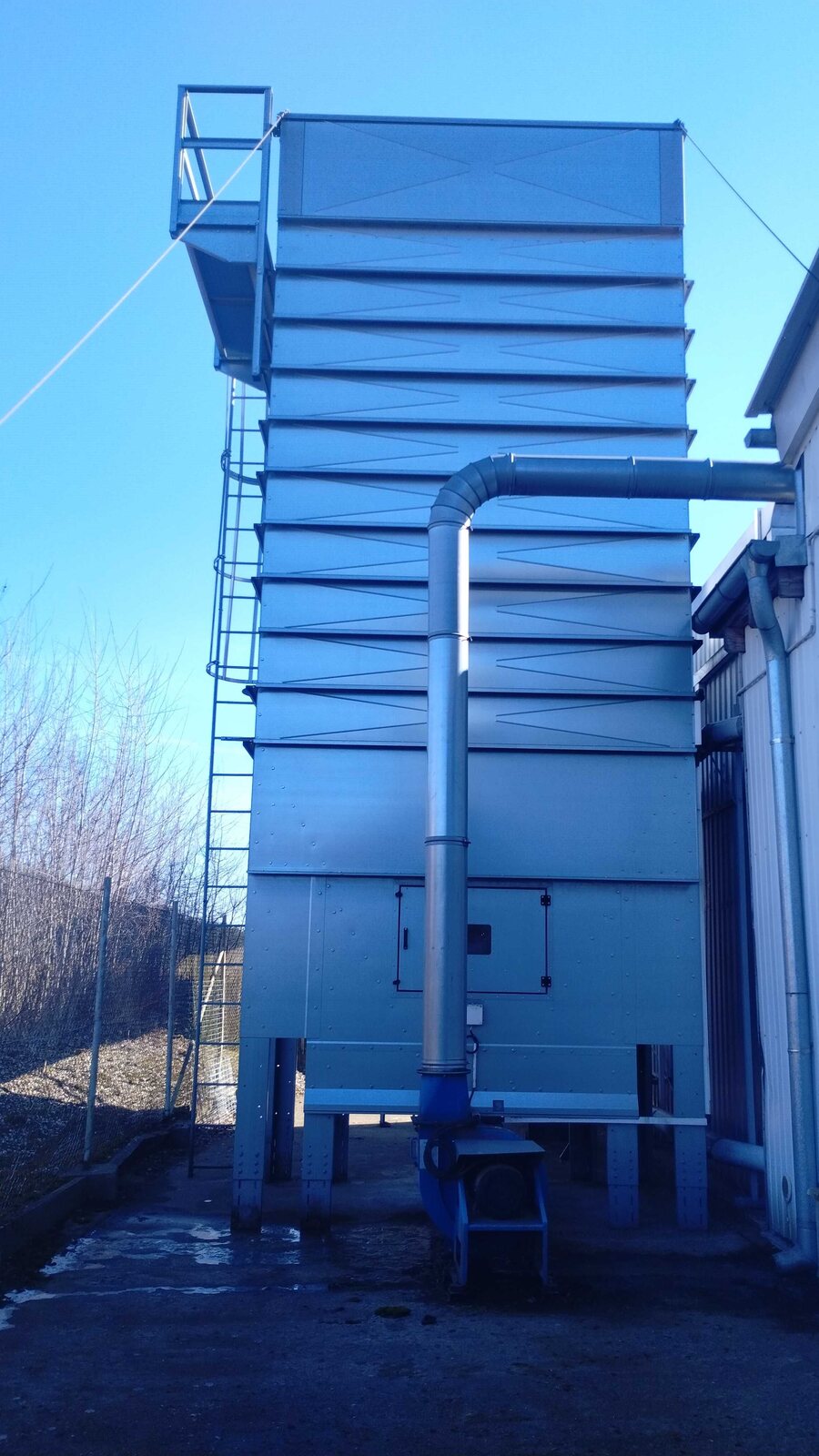

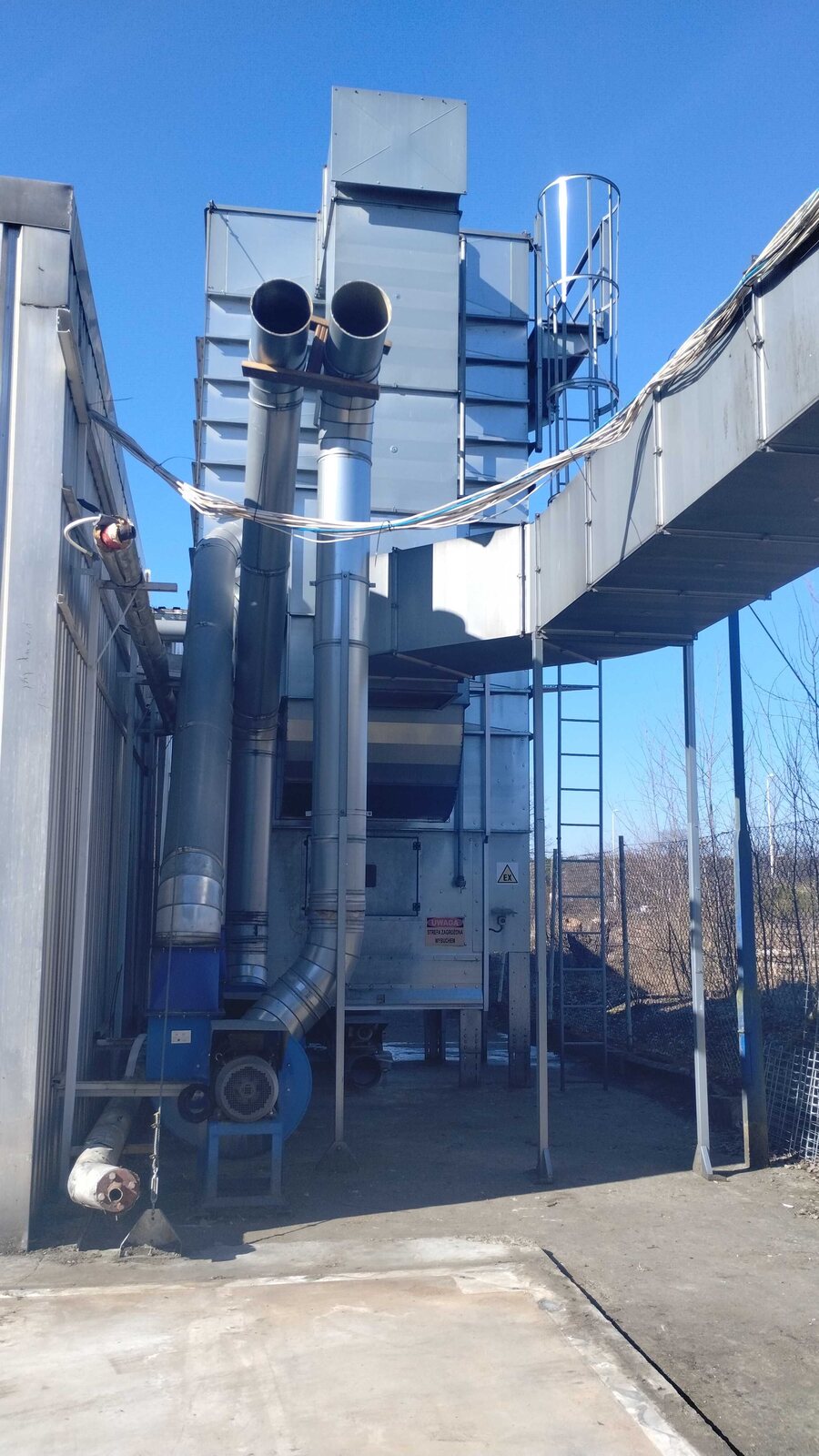

The installation may be suitable for sawmills, industrial joinery plants, furniture factories and other wood-processing facilities requiring a high-capacity central dust-extraction solution. The photo gallery documents the main filter unit, fan section and installed ductwork.
Photo gallery
Photo gallery
Open a photograph to view it at full size.
Project information
Technical overview
Further technical information, photographs and available documentation are provided to qualified parties after an initial enquiry.
- Region
- Central Europe
- Price
- 120,000 PLN / approx. 27,500 EUR · negotiable
- Manufacturer
- Nawara Serwis
- Model
- FW 2030
- Filter type
- Overpressure bag filter
- Filter area
- 150 m²
- Air capacity
- 30,000 m³/h
- Filter bags
- Ø160 × 3,000 mm
- Dimensions
- Height 7,835 mm; width 3,039 mm
- Cleaning
- Automatic mechanical shaker
- Heat recovery
- Recirculation of filtered air in winter
Dismantling and relocation can be arranged.
BarTo works with a technical company that can support dismantling and relocation of this machinery. The exact scope, availability, schedule and price are agreed separately for each project and are not included in the machinery price unless expressly confirmed.
